Shacman F3000 Truck Mounted Jib Crane 12ton Mounted Mobile Construction Crane
The Shacman F3000 Truck Mounted Jib Crane with a 12-ton lifting capacity is a heavy-duty, multi-functional vehicle designed for lifting and transporting goods in construction, logistics, and other heavy-duty applications.
Key Advantages
Multi-Functionality: The primary advantage is combining a lifting machine (the crane) and a transport vehicle (the cargo truck) into one unit, improving efficiency and reducing the need for separate machinery.
Heavy-Duty Performance: Built with a high-strength frame, MAN-technology axles, and a high-torque Weichai/Cummins engine, it is designed for heavy lifting and transportation on tough roads.
Versatile Applications: It is commonly used for:
- Construction Sites: Lifting and positioning materials like steel, concrete blocks, pipes, and scaffolding.
- Logistics & Warehousing: Loading and unloading heavy items at docks and storage yards.
- Field Operations: Oilfield, mining, and utility maintenance.
- Roadside Rescue: Recovery and towing operations.
Truck crane, also called boom truck crane, mobile truck crane, truck mounted crane, hydraulic folding truck crane, telescopic straight boom crane, truck with crane, crane lorry, hydraulic arm crane for trucks, pickup truck mounted crane, light truck with crane, folding arm hydraulic lift platform, hydraulic crane telescopic boom, mobile crane price, self loader truck with boom crane, new forland lorry truck mounted crane, telescopic boom truck mounted crane, flatbed knuckle boom truck crane, 6 wheelers truck with crane boom truck cranes sale etc.
A crane mounted on a truck carrier provides the mobility for this type of crane. This crane has two parts: the carrier, often referred to as the Lower, and the lifting component which includes the boom, referred to as the Upper. These are mated together through a turntable, allowing the upper to swing from side to side. These modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane. The upper is usually powered via hydraulics run through the turntable from the pump mounted on the lower. In older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the crane down the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran the upper through a hydraulic pump of its own. Many older operators favor the two-engine system due to leaking seals in the turntable of aging newer design cranes.
Shacman F3000 Truck Mounted Jib Crane 12ton Mounted Mobile Construction Crane Technical date :
| Feature | Telescopic (Straight) Boom Crane (Example: XCMG SQ12SK3Q) | Knuckle (Folding) Boom Crane (Example: XCMG SQ12ZK3Q) |
| Max Lifting Capacity | 12,000 kg (12 tons) | 12,000 kg (12 tons) |
| Max. Lifting Moment | Typically around 30 T (300 kN | Typically around 30 T (300 kN ) |
| Boom Type | Straight arm, telescopic sections (e.g., 4 or 5 sections) | Folding/Knuckle arm |
| Max. Working Radius | Varies, typically 12 m to 17.5 m | Varies, typically 10 m (for a foldable unit) |
| Max. Lifting Height | Varies, typically 14.5 m to 20 m | Corresponds to max working radius |
| Rotation | 360-degree continuous rotation | 360-degree continuous rotation |
| Outriggers | Hydraulic outriggers (often a two-cavity back leg system) for stability. | Hydraulic outriggers (often a two-cavity back leg system) for stability. |
| Feature | Specification |
| Driving Type | 6x4 (3 axles, 2 driving axles) is common. 8x4 is also available for higher load capacity. |
| Engine | Weichai (e.g., WP10 series) or Cummins engine. |
| Horsepower | Common options include 340 HP or 380 HP. |
| Emission Standard | Varies by market (often Euro II to Euro V). |
| Gearbox | FAST manual transmission (e.g., 10-speed forward and 2 reverse gears). |
| Front Axle | MAN technology (e.g., 7.5 Ton capacity). |
| Rear Axle | MAN technology, double reduction (e.g., 13 Ton or 16 Ton capacity per axle). |
| Tires | 12.00R20 or similar radial tires. |
| Fuel Tank | Large capacity, often 400L aluminum alloy. |
| Cabin | F3000 Cab with features like a sleeper berth, hydraulic driver's seat, four-point hydraulic suspension, and A/C for driver comfort. |
| Cargo Body | Dimensions are customized, but a typical inner dimension might be around 8000-8500 x 2450 x 550/600 mm. |
| Product name | Shacman 6x4 truck with 12 ton stiff boom crane | Max Speed | 89km/h | Crane | 12/14/16 ton stiff boom crane |
| Chassis Brand | Shacman | Axles | 3 | Arms sections | 4-5 |
| Rated loading weight | 15000KG | Engine Brand | Weichai | Max lifting capacity | 16 ton |
| Curb weight | 19000KG | Horse Power | 340hp | Max lifting height | 21.5m |
| Dimensions | 12000x2450x3560mm | Emissions | 2088ml | Max working radius | 19.5m |
| Cargo body dimension | 800x2300x550mm | Cab | one and half row | Operation pressure | 30mpa |
| Wheelbase | 5770+1350mm | Tire | 10+1 | Deadweight of crane | 4600kg |
| Drive type | 6x4 LHD/RHD | Gross weight | 25000kg | Rotation angle | 360 full rotation |
Shacman F3000 Truck Mounted Jib Crane 12ton Mounted Mobile Construction Crane Application :
- Construction and Infrastructure
- Lifting and Positioning Materials: Hoisting heavy building materials like steel beams, concrete panels, pre-fabricated structures, pipes, lumber, and pallets of bricks or cement bags onto high places or designated areas on a construction site.
- Road Construction: Lifting and installing concrete culverts, drainage pipelines, and street lighting components.
- Small to Mid-Size Projects: Its mobility makes it ideal for projects where a traditional, fixed tower crane would be too costly or impractical to set up and tear down, especially in urban environments or tight spaces.
- Logistics and Transportation
- Cargo Loading and Unloading: Efficiently loading and unloading heavy or bulky cargo onto the truck bed itself, or onto other transport vehicles and containers at warehouses, ports, or freight yards. This eliminates the need for a separate stationary crane.
- Material Transportation: Transporting the lifted materials directly to or from the job site, as the truck chassis has an integrated cargo box.
- Utility and Maintenance Work
- Power Line Maintenance: Lifting workers, tools, and equipment to elevated areas for repairing or installing power lines and utility poles.
- Tree Trimming and Removal: Providing the necessary reach and lifting capacity for forestry work, allowing workers to safely access and prune overgrown branches.
- General Heavy Lifting and Special Tasks
- Field Rescue: Providing quick response in emergencies (like accidents or natural disasters) to lift debris, move obstacles, or assist in recovery operations.
- Equipment Servicing: Lifting and positioning heavy machinery or components for maintenance or assembly in various industrial settings.

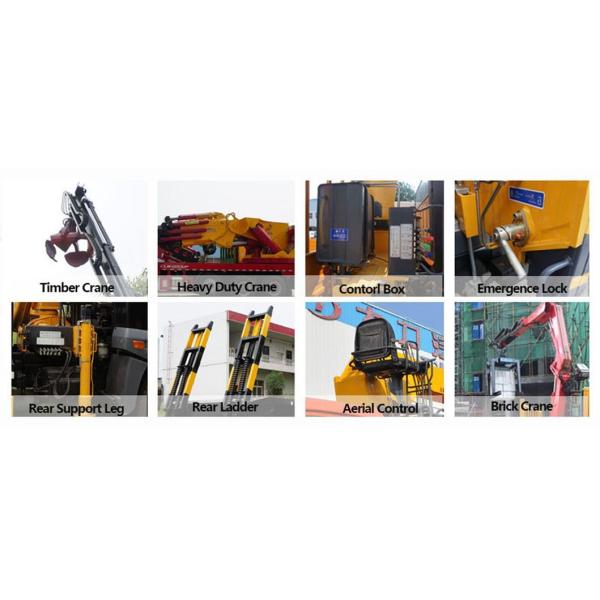

Shacman F3000 Truck Mounted Jib Crane 12ton Mounted Mobile Construction Crane Details :
About Chengli Special Automobile Co., Ltd :
Chengli Special Automobile Co., Ltd. is a major Chinese manufacturer specializing in the research, development, production, and sales of a vast range of special-purpose vehicles. It is the core and most prominent subsidiary of the larger CLW Group.
Here is a summary of the company's key attributes:
1. Scale and Headquarters
Location: Headquartered in Suizhou City, Hubei Province, which is often called the "Capital of China's Special Purpose Vehicles."
Size: It is one of the largest special vehicle manufacturers in Central China, recognized as a large-scale enterprise by the Chinese government.
Honors: The parent CLW Group is often ranked among China's Top 500 Private Enterprises and holds trademarks like "China Famous Trademark."
Capacity: The group has a significant annual production capacity for special vehicles (trucks).
Established in Sep. 2004, Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB (14 millions US Dollars) and total capital 6,000,000,000 (840 millions US Dollars).
Chengli Special Automobile Co., Ltd Overseas Market
Their overseas market strategy is focused on several key geographic regions:
1. Africa
Africa is a major market for Chengli's special vehicles, particularly those used for sanitation, construction, and infrastructure.
- East Africa: Tanzania, Kenya, Uganda, Malawi.
- West Africa: Nigeria, Ghana, Senegal, Togo, Benin, Niger, Mali, Congo, Congo-Brazzaville.
- Southern Africa: South Africa, Zimbabwe, Angola, Mozambique.
- Other: Algeria, Sudan, Ethiopia.
2. Asia
The Asian market, including Southeast, South, and Central Asia, is a significant consumer of Chengli's products.
- Southeast Asia: Philippines, Myanmar (Burma), Singapore, Malaysia, Vietnam, Cambodia, Laos, Thailand.
- South Asia: Bangladesh, Pakistan, Sri Lanka.
- Central Asia: Kazakhstan, Uzbekistan, Kyrgyzstan, Mongolia.
- Other: Middle East (Mideast) region, where they supply fuel and LPG tankers.
3. South America
Chengli has established a presence in the Latin American market for its trucks.
- Specific Countries: Peru, Bolivia, Panama, Chile, Venezuela, Ecuador.
4. Oceania and Other Regions
They also reach markets in other parts of the world, including:
- Oceania: Australia, New Zealand.
- Europe/Eurasia: Russia.
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
